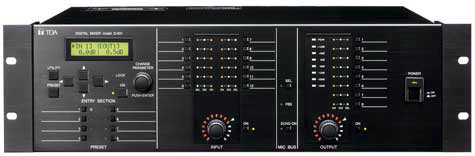

D-901 Digital Modular Mixer
D-901 Digital Modular Mixer
D-901digital mixer

The D-901 DIGITAL MIXER is the ideal solution for a wide variety of installed sound applications including audio/visual, houses of worship and many others. The D-901's modular design supports up to twelve mic/line inputs and eight line outputs with flexible RS-232 or contact-closure remote control. Audio processing tools include automixing, feedback suppression, multi-band parametric filters, compressor s, limiters, noise gates, crossovers, delays and more.

Full input-to-output matrixing allows users to store and recall any input to output combination for multi-zone or room-combining applications. The unit can be programmed via the front panel display or with configured off-site with PC control software for later uploading. The D-901 DIGITAL MIXER is the ideal solution for a wide variety of installed sound applications including audio/visual, houses of worship and many others. The D-901's modular design supports up to twelve mic/line inputs and eight line outputs with flexible RS-232 or contact-closure remote control.

Audio processing tools include automixing, feedback suppression, multi-band parametric filters, compressor s, limiters, noise gates, crossovers, delays and more. Full input-to-output matrixing allows users to store and recall any input to output combination for multi-zone or room-combining applications. The unit can be programmed via the front panel display or with configured off-site with PC control software for later uploading.

Rack-mount digital mixer for installed sound applications such as audio/visual, corporate boardrooms and houses of worship

Modular design allows versatile configurations up to 12 inputs and 8 outputs

Intuitive operation via front panel display and controls

Auto-Mixing allows "set-and-forget" operation

Feedback Suppression automatically attenuates up to 12 problem frequencies

Essential audio processing tools compressors, gates, crossovers, multi-band filtering, parametric, high/low-pass, all-pass and notch filters, horn EQ, high/low shelving and output delay

Eight bus matrix allows flexible input-to-output signal routing for zoning or room-combining

Eight levels of assignable ducking for multi-level priority configurations (paging matrix)

Input and output channel metering

Download (PDF) D-901 Product brochure and specification



D-921E
MIC/LINE INPUT MODULE (24-bit A/D)

  • Two balanced mic or line level inputs
  • 24-bit A/D converters
  • Adjustable input gain
  • Phantom power
  • Phoenix-style terminal block connectors


D-971E
LINE OUTPUT MODULE

  • Four balanced line level outputs
  • 24-bit A/D converters
  • Phoenix-style terminal block connectors
