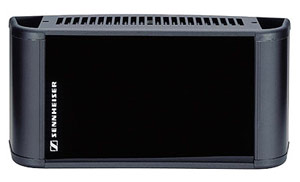

SZI1015T Infra Red Modulator/Radiator

SZI1015T Infra Red Modulator/Radiator

The SZI 1015T is a 2-watt emitter with a coverage area of up to 4,000 sq.ft. The emitter is switched on and off automatically by the modulator’s RF carrier. The RF signal from the modulator can be daisy-chained via BNC sockets.

A barrier strip with RF modulated and DC inputs and outputs is connected in parallel. The emitter has a 5/8" thread and comes with a 3/8" and 1/2" adapter. It can therefore, easily be mounted to various attachments.

Area of coverage can be expanded by use of the SZI1015S.

• 2-Watt infrared radiator with integrated modulator with 30 kHz-6 MHz range
• RF output (BNC socket and barrier strip) for connecting additional radiators
• Automatic on/off function
• 5/8" and 3/8" threads
• Compatibility with existing installations
• Easy installation
• Controlled from a single location
• Versatile installations
• Available in black and white
• Two SZI 1015s can be remotely powered by SI 1015/T

	IR Diodes		72
	Effektive radiated power		2 W
	Max. coverage area		400 m²
	Carrier frequencies		30 kHz- 6 MHz
	Threshold for automatic on/off function		50 mV
	Operating voltage (mains)		25-30 V DC
	Current consumption		0,7 A bei 25 V
	Dimensions		250 x 100 x 80 mm
	Weight		1,3 kg
	Input voltage range		50 mV - 3 V
	Audio-XLR connector		BNC - Socket
